Solar Freezer – DC Powered

Solar Fridge

C4P Inc. is a leading solar freezer manufacturing agent in North America with the largest DC powered chest freezer at 21 cubic feet. With all of our 9, 14 and 21 cubic foot chest freezers, storage space is abundant. The solar-powered chest freezer consumes minimal energy as compared to an average appliance due to C4P’s specialized DC compressor, sealant technology, and 4.5″ layer of polyurethane insulation. No inverters are needed for operation; these solar freezers can run straight from batteries.

All of C4P’s solar freezer models are built from the ground up and wired to operate on DC, which is the energy generated from solar panels. This means having a DC-specific compressor and module, as well as a thicker gauge of cable in order to handle the DC power. Our solar freezers can be operated with a single 220 watt panel and two deep cycle batteries, allowing you to save not only on the cost of an inverter, but also on panels and batteries, as well as the space they take up.

The SunStar solar freezer series also features a powdered coated galvanized steel interior for durability and longevity, a double gasket design to ensure the tightest freezer seal possible, along with a powerful cooling fan to enhance the life of the compressor, and in turn, your freezer. All of our solar appliances are equipped with an automatic voltage detection switch, so your 12 volt freezer can flawlessly switch to a 24 volt freezer. C4P Inc. also works with our partners to manufactures a line of solar refrigerators.

Please sign and fill out the Voltray & SunStar Warranty Card

(Right click and save the PDF file)

Features

  • 12v / 24v DC Power
  • Adjustable temperature control
  • Two in one thermostat (refrigerate or freeze)
  • Steel Coated interior
  • Air cooled condenser for fast cool down
  • Minimal frost build up & cold loss
  • No inverter needed
  • 4.5 inch polyurethane walls
  • Operating lights for easy trouble shooting

Suitable Locations

  • Hunting & Fishing Camps
  • Homes & Cabins
  • Medical
  • Markets & Stores
  • Remote locations requiring an off-grid freezer

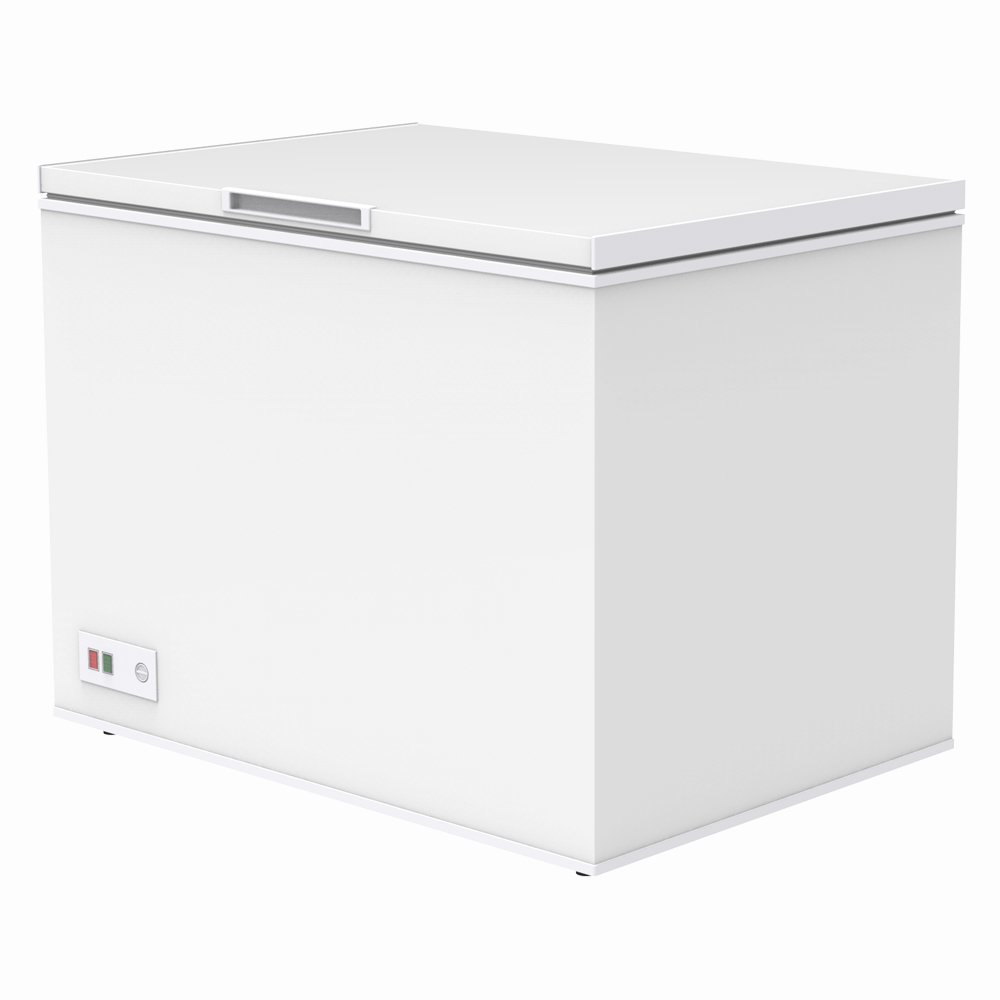

C4P9SCF

Specifications

  • Total Volume: 254 Liters / 9 cu.ft
  • Rated Operation Voltage: 12V 9.6-17V / 24V 21-31.5V
  • Rated Current: 5 / 2.5
  • Initial Power Draw: 40 – 100 watt
  • Refrigeration Agent: R134A
  • Blowing Agent: Cyclopentane
  • Product Dimensions (in): Width 31.6″ / Height 32.7″ / Length 43.7″
  • Weight: 60kg / 132lbs
  • Warranty: 1.5 yrs
12 volt Solar Freezer

Energy Consumption Guide (24 h)

Room / Op. Temp.32°F (0°C)8°F (-13°C)0°F (-18°C)
70°F (21°C)216 Wh / 16.5 Ah300 Wh / 24 Ah374 Wh / 28 Ah
90°F (32°C)272 Wh / 20.5 Ah376 Wh / 28 Ah481 Wh / 38 Ah

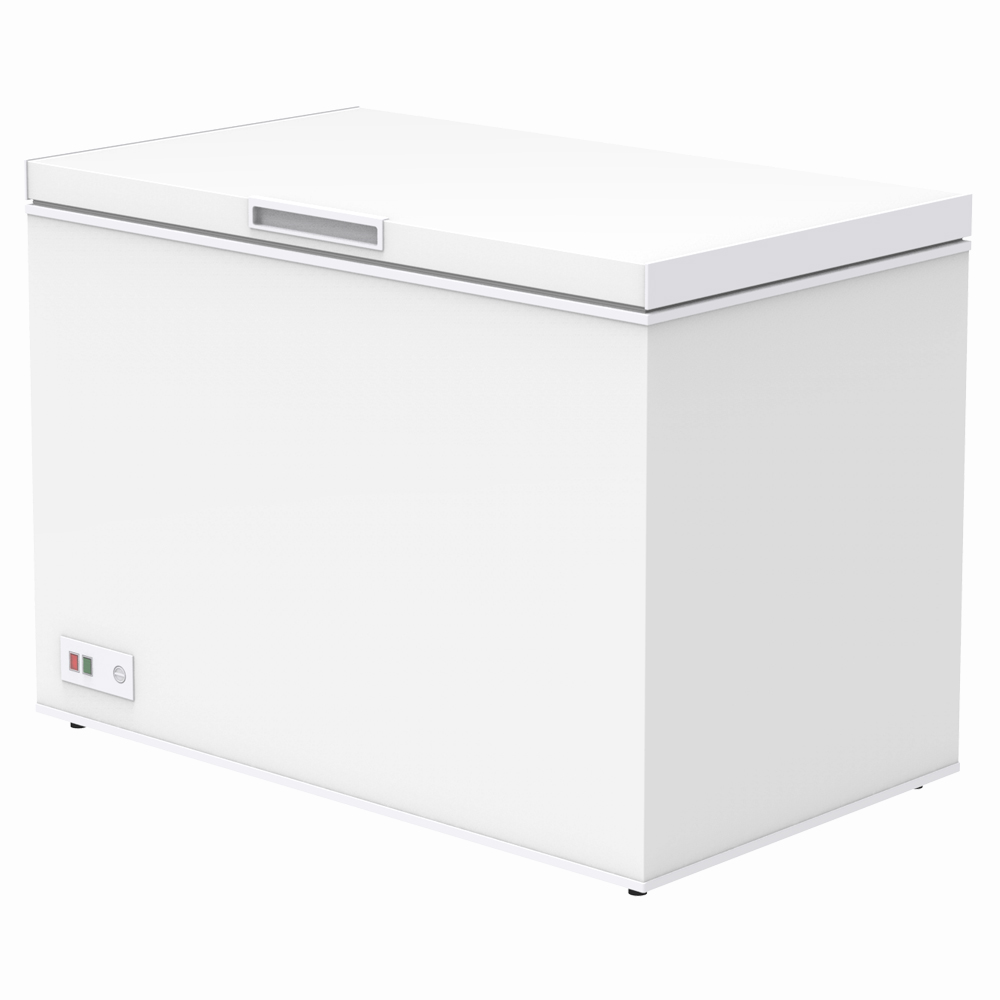

C4P14SCF

Specifications

  • Total Volume: 395 Liters / 14 cu.ft
  • Rated Operation Voltage: 12V 9.6-17V / 24V 21-31.5V
  • Rated Current: 8 / 4
  • Initial Power Draw: 95 – 150 watt
  • Refrigeration Agent: R134A
  • Blowing Agent: Cyclopentane
  • Product Dimensions (in): Width 31.7″ / Height 38″ / Length 53.5″
  • Weight: 85kg / 187.4lbs
  • Warranty: 1.5 yrs
Solar Freezer

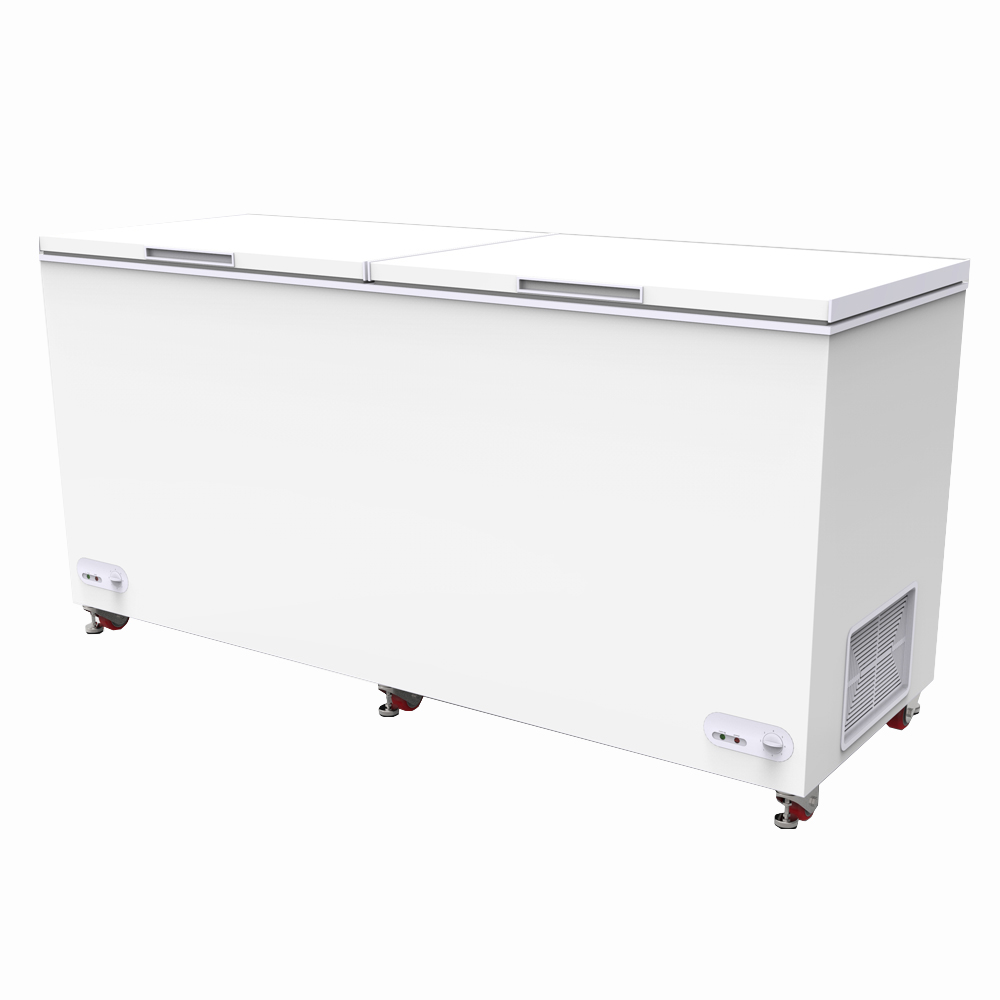

C4P21SCF

Specifications

  • Total Volume: 598 Liters / 21 cu.ft
  • Rated Operation Voltage: 12V 9.6-17V / 24V 21-31.5V
  • Rated Current: 4A x2 / 5A x2
  • Initial Power Draw: 60 x 2 watt
  • Refrigeration Agent: R134A
  • Blowing Agent: Cyclopentane
  • Product Dimensions (in): Width 31.7″ / Height 38″ / Length 82.9″
  • Weight: 135kg / 298lbs
  • Warranty: 1.5 yrs
Solar Chest Freezer

Energy Consumption Guide (24 h)

Room / Op. Temp32°F (0°C)8°F (-13°C)0°F (-18°C)
70°F (21°C)306 Wh / 25.5 Ah444 Wh / 37 Ah522 Wh / 43.5 Ah
90°F (32°C)384 Wh / 32 Ah522 Wh / 43.5 Ah708 Wh / 59 Ah
