C4P Inc. can arrange OEM and ODM for a variety of solar refrigerator models ranging from 6.1 to 11.1 cubic feet in capacity. These solar fridges are an exceptional choice for use as an RV refrigerator, in an aquatic vessel, or in off-grid housing; no inverters are needed, our solar refrigerators can run straight from batteries. This means that the energy generated from your solar panels goes directly into powering your refrigerator without needing to convert back to AC and waste energy.
All of our DC refrigerator models are equipped with an automatic voltage detection switch, so your 12 volt refrigerator can flawlessly switch to a 24 volt refrigerator. With an automatic defrost and a 7 setting thermostat, these solar fridges are designed to be off-grid kitchen necessities. Our patented compressor design allows any of our solar fridge models to be powered by one 220 watt solar panel. C4P Inc. is also a manufacturing agent for a line of solar freezers.
Please sign and fill out the Voltray & SunStar Warranty Card
(Right click and save the PDF file)
Features
- 12v / 24v DC Power
- Adjustable temperature control
- Top Refrigerator / Bottom Freezer
- Automatic interior LED lights
- Adjustable shelving in refrigerator compartment
- Drawers included in freezer compartment
- Manual ice maker
- No inverters required
Suitable Locations
- Hunting & Fishing Camps
- Homes & Cabins
- Medical
- Markets & Stores
- Remote locations requiring an off-grid refrigerator

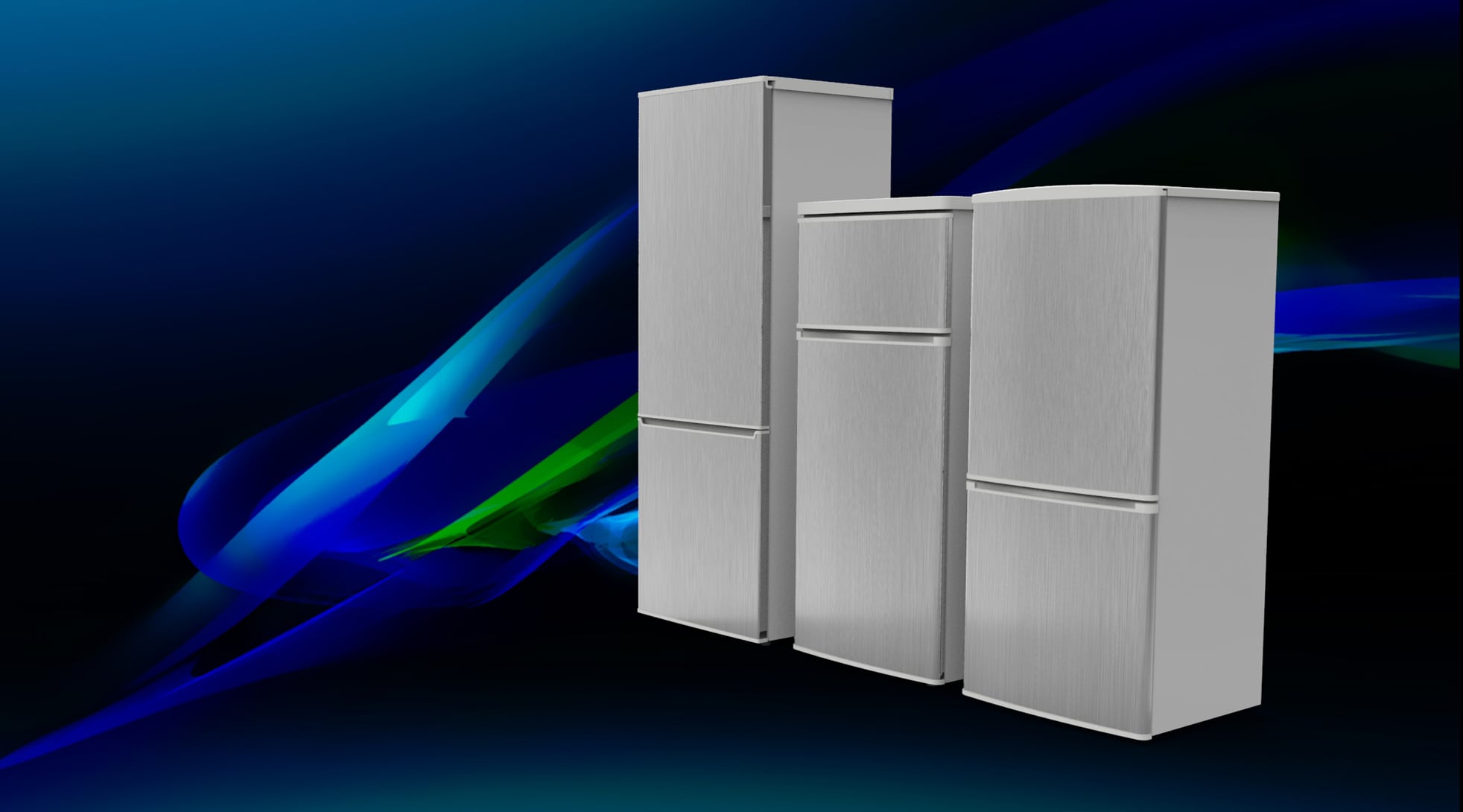

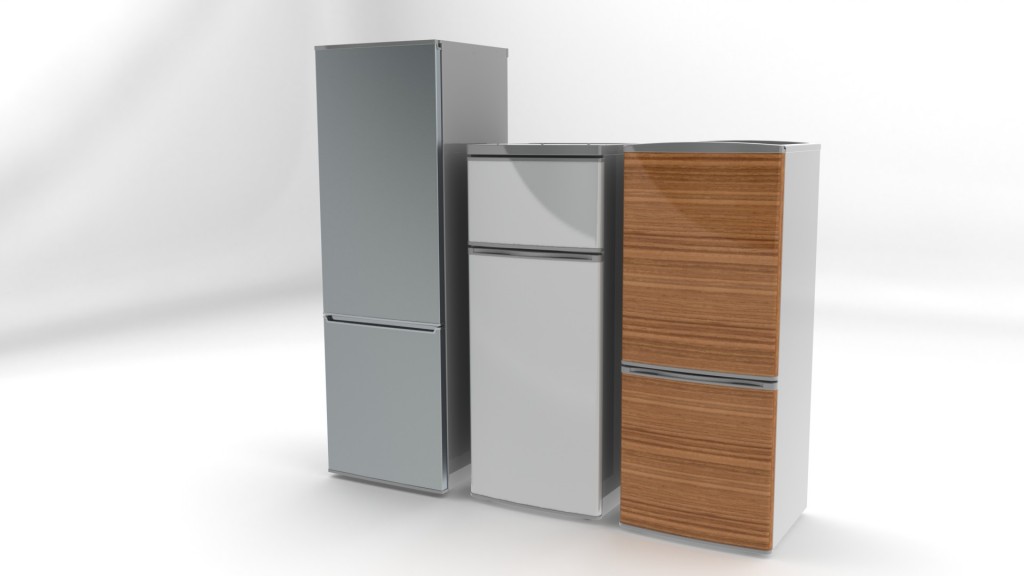

Solar Refrigerator Models

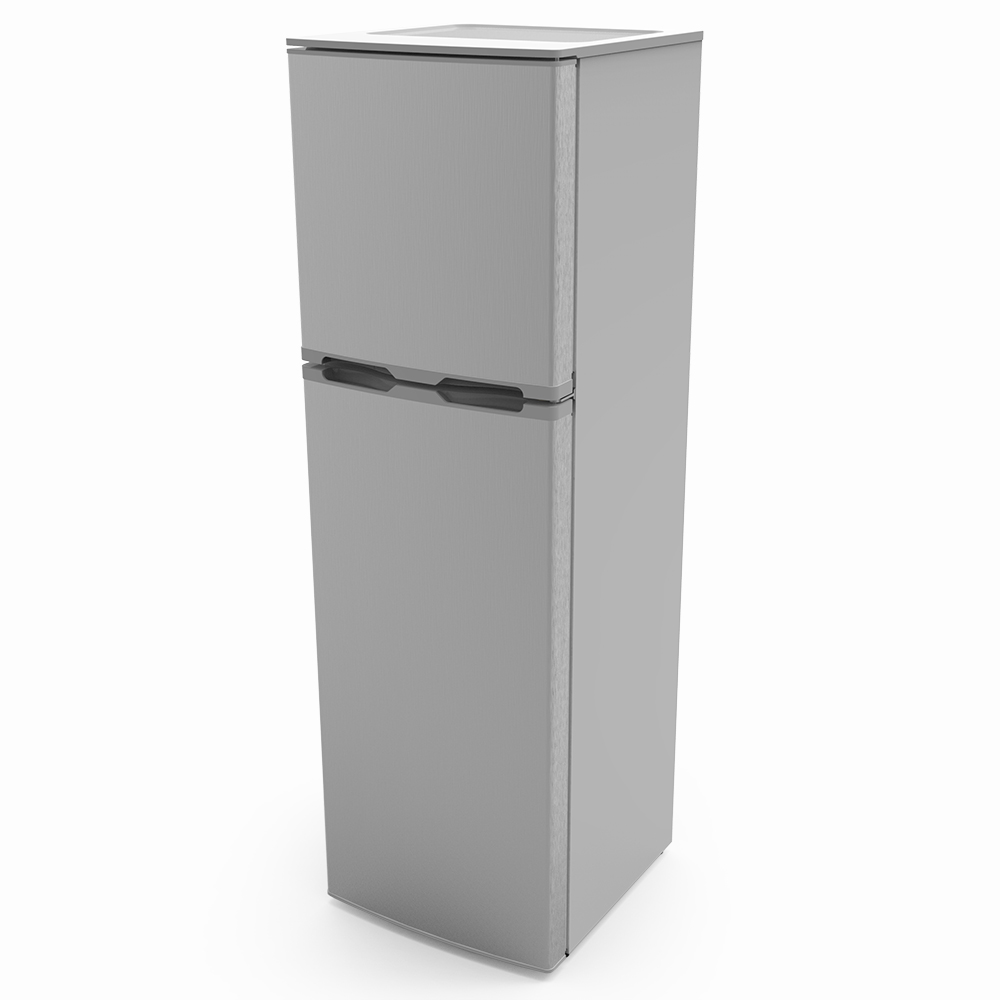

C4P6.1SRVR
Specifications
- Total Volume: 170 Liters / 6.1 cu.ft
- Freezer Volume: 45 Liters / 1.6 cu.ft
- Refrigerator Volume: 127 Liters / 4.5 cu.ft
- Rated Operation Voltage: 12V 9.6-17V / 24V 21-31.5V
- Rated Current: 5 / 2.5
- Initial Power Draw: 70 – 100 watt
- Refrigeration Agent: R134A
- Blowing Agent: Cyclopentane
- Product Dimensions (in): Width 20.5″ / Depth 19″ / Height 61″
- Weight: 39kg / 86lbs
- Warranty: 1 yr
Energy Consumption Guide (24 h)
| Room / Op. Temp | Fridge 35°F (2°C) | Freezer -10°F (-23°C) | Total Watt Hours / Amp Hours |
|---|---|---|---|
| 70°F (21°C) | 361 Wh / 28.8 Ah | 209 Wh / 16.7 Ah | 570 Wh / 45.5 Ah |
| 90°F (32°C) | 450 Wh / 36.07 Ah | 261 Wh / 20.8 Ah | 712 Wh / 57 Ah |
C4P7.4SRVR
Specifications
- Total Volume: 210 Liters / 7.4 cu.ft
- Freezer Volume: 48 Liters / 1.7 cu.ft
- Refrigerator Volume: 162 Liters / 5.7 cu.ft
- Rated Operation Voltage: 12V 9.6-17V / 24V 21 – 31.5V
- Rated Current: 5 / 2.5
- Initial Power Draw: 73 – 105 watt
- Refrigeration Agent: R134A
- Blowing Agent: Cyclopentane
- Product Dimensions (in): Width 23.6″ / Depth 21.7″ / Height 56″
- Weight: 43kg / 94.6 lbs
- Warranty: 1 yr
Energy Consumption Guide (24 h)
| Room / Op. Temp | Fridge 35°F (2°C) | Freezer -10°F (-23°C) | Total Watt Hours / Amp Hours |
|---|---|---|---|
| 70°F (21°C) | 361 Wh / 28.8 Ah | 209 Wh / 16.7 Ah | 570 Wh / 45.5 Ah |
| 90°F (32°C) | 450 Wh / 36.07 Ah | 261 Wh / 20.8 Ah | 712 Wh / 57 Ah |

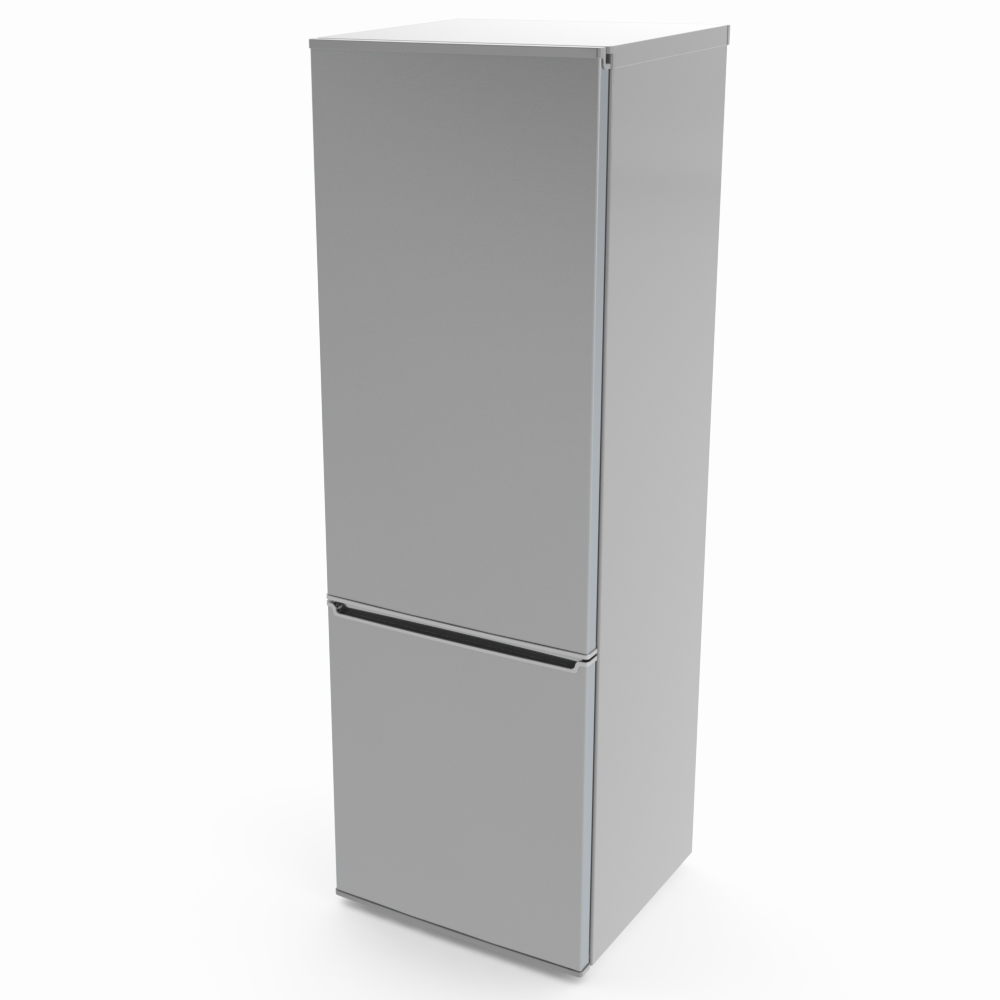

C4P11.1SRVR
Specifications
- Total Volume: 315 Liters / 11.1 cu.ft
- Freezer Volume: 96.5 Liters / 3.4 cu.ft
- Refrigerator Volume: 218 Liters / 7.7 cu.ft
- Rated Operation Voltage: 12V 9.6-17 / 24V 21-31.5V
- Rated Current: 8 / 4
- Initial Power Draw: 115 – 145 watt
- Refrigeration Agent: R134A
- Blowing Agent: Cyclopentane
- Product Dimensions (in): Width 22″ / Depth 23″ / Height 72.8″
- Weight: 66kg / 145lbs
- Warranty: 1 yr
Energy Consumption Guide (24 h)
| Room / Op. Temp | Fridge 35°F (2°C) | Freezer -10°F (-23°C) | Total Watt Hours / Amp Hours |
|---|---|---|---|
| 70°F (21°C) | 455 Wh / 36.4 Ah | 234 Wh / 18.72 Ah | 689 Wh / 55.12 Ah |
| 90°F (32°C) | 469 Wh / 45.52 Ah | 292 Wh / 23.5 Ah | 861 Wh / 68.9 Ah |
