Suntye Solar Panels

Suntye Logo

C4P Inc. carries a wide range of Suntye solar panels that can be used for almost any off grid application. Our solar panels are made from South Korean and Japanese polycrystalline solar cells and are offered in sizes and power supply capabilities ranging from 10 – 200 watt output. For pricing or inquiries on custom solar panels feel free to contact C4P Inc. for more information.

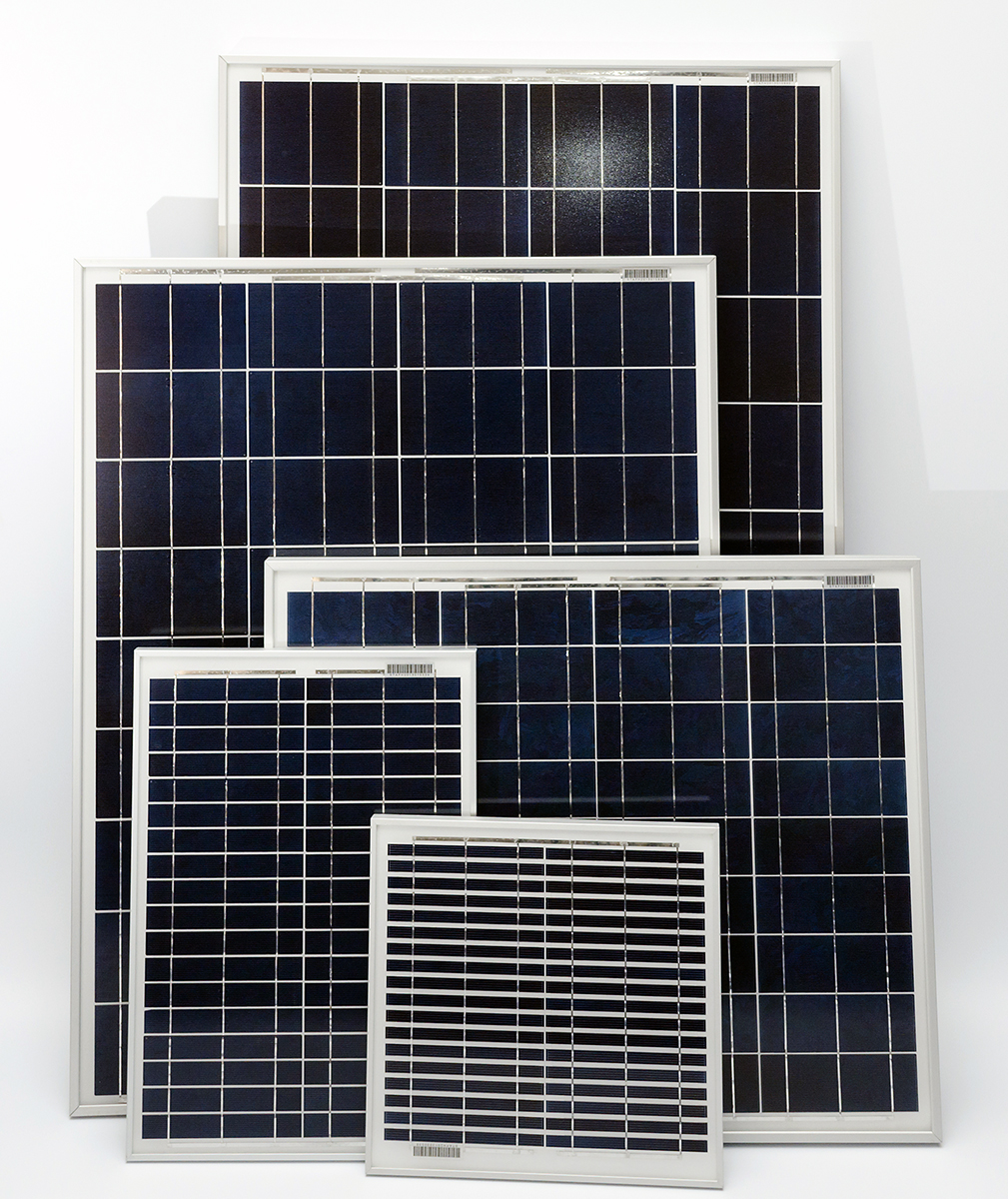

Solar Panel Models

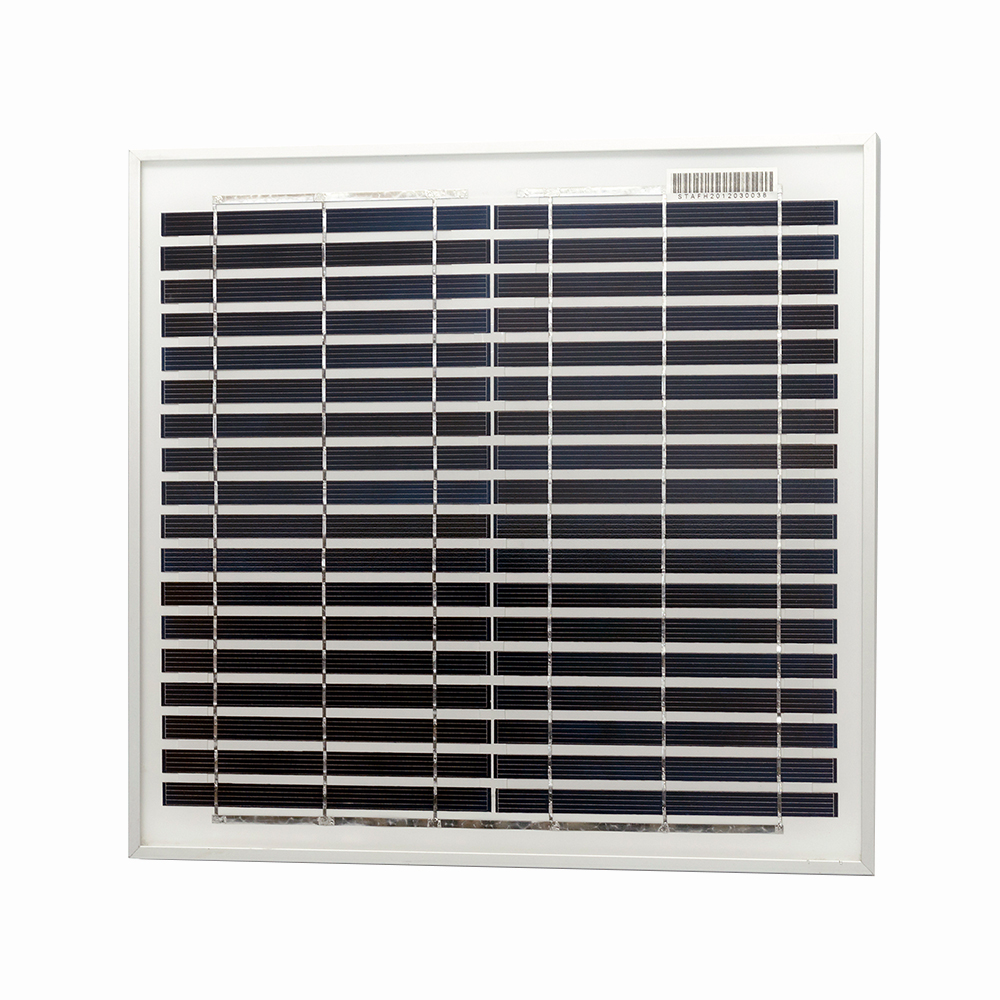

Suntye 10W



Click here to see it in our store!
Wattage (W)
10W
Model No.
ST-SP-10
Cell Type
Polycrystalline
Peak Power (Pmax)
10Wp
Power Tolerance
(+/-) 3%
Open Circuit Voltage
21.6V
Max. Power Voltage
17.5V
Short Circuit Current
0.62A
Max. Power Current
0.57A
Max System Voltage
600V DC
Gross Weight
3.5lbs
Net Weight
2.9lbs
Dimensions (mm)
H 330 x W 345 x D 18

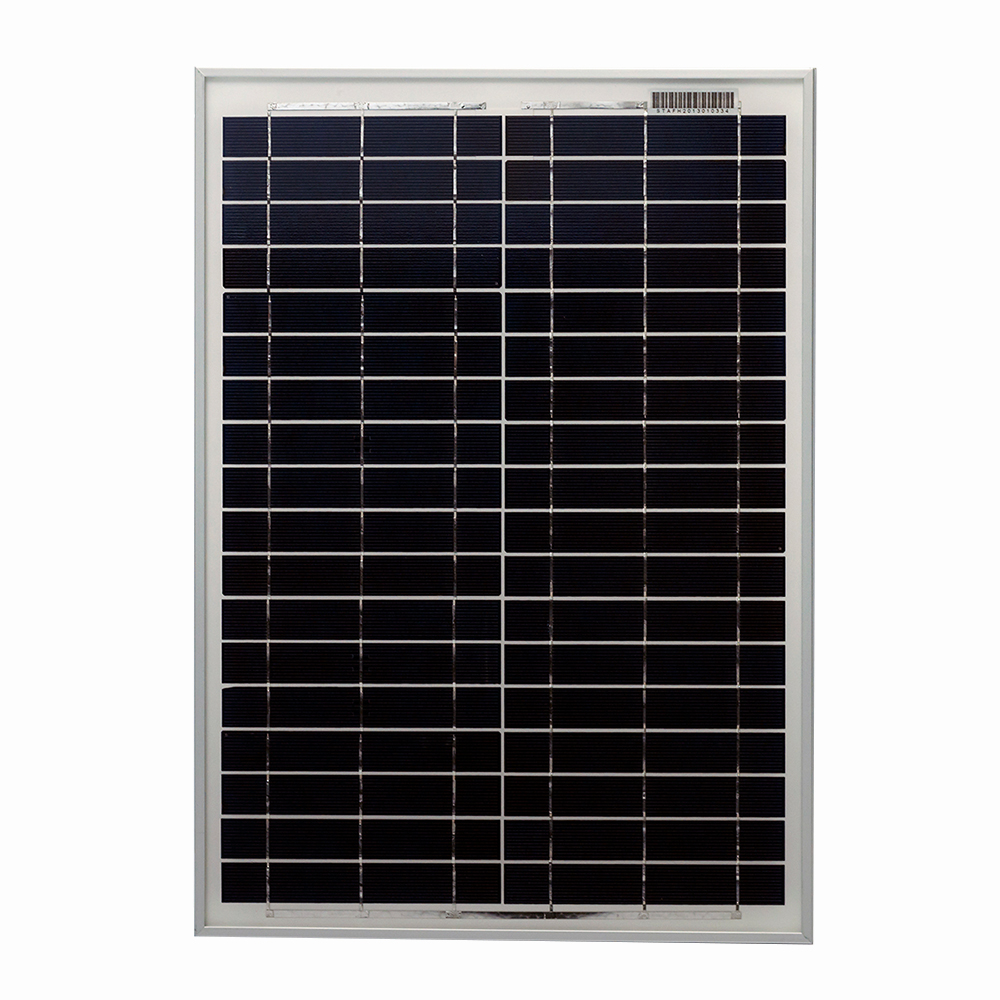

Suntye 20W



Click here to see it in our store!
Wattage (W)
20W
Model No.
ST-SP-20
Cell Type
Polycrystalline
Peak Power (Pmax)
20Wp
Power Tolerance
(+/-) 3%
Open Circuit Voltage
21.6V
Max. Power Voltage
17.5V
Short Circuit Current
1.23A
Max. Power Current
1.14A
Max System Voltage
600V DC
Gross Weight
4.9lbs
Net Weight
4.0lbs
Dimensions (mm)
H 485 x W 345 x D 18

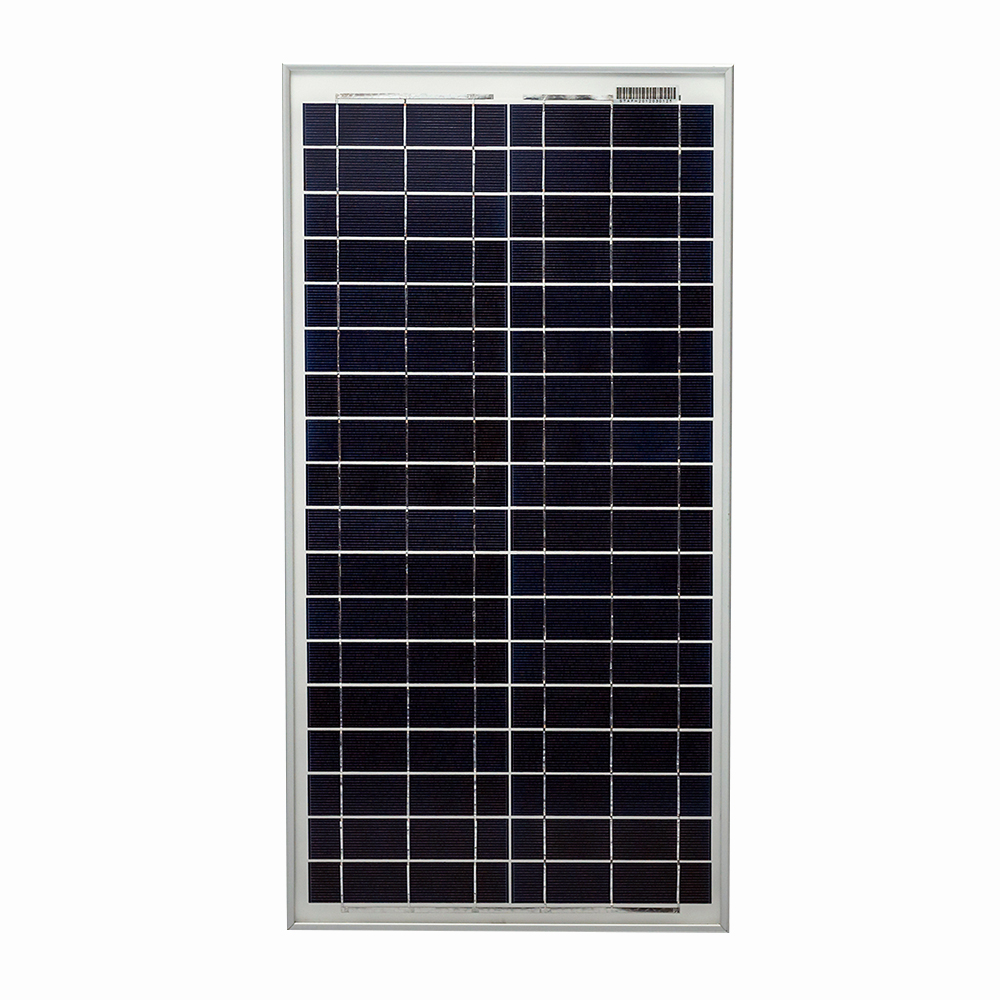

Suntye 30W



Click here to see it in our store!
Wattage (W)
30W
Model No.
ST-SP-30
Cell Type
Polycrystalline
Peak Power (Pmax)
30Wp
Power Tolerance
(+/-) 3%
Open Circuit Voltage
21.6V
Max. Power Voltage
17.5V
Short Circuit Current
1.85A
Max. Power Current
1.71A
Max System Voltage
600V DC
Gross Weight
6.0lbs
Net Weight
5.0lbs
Dimensions (mm)
H 680 x W 345 x D 25

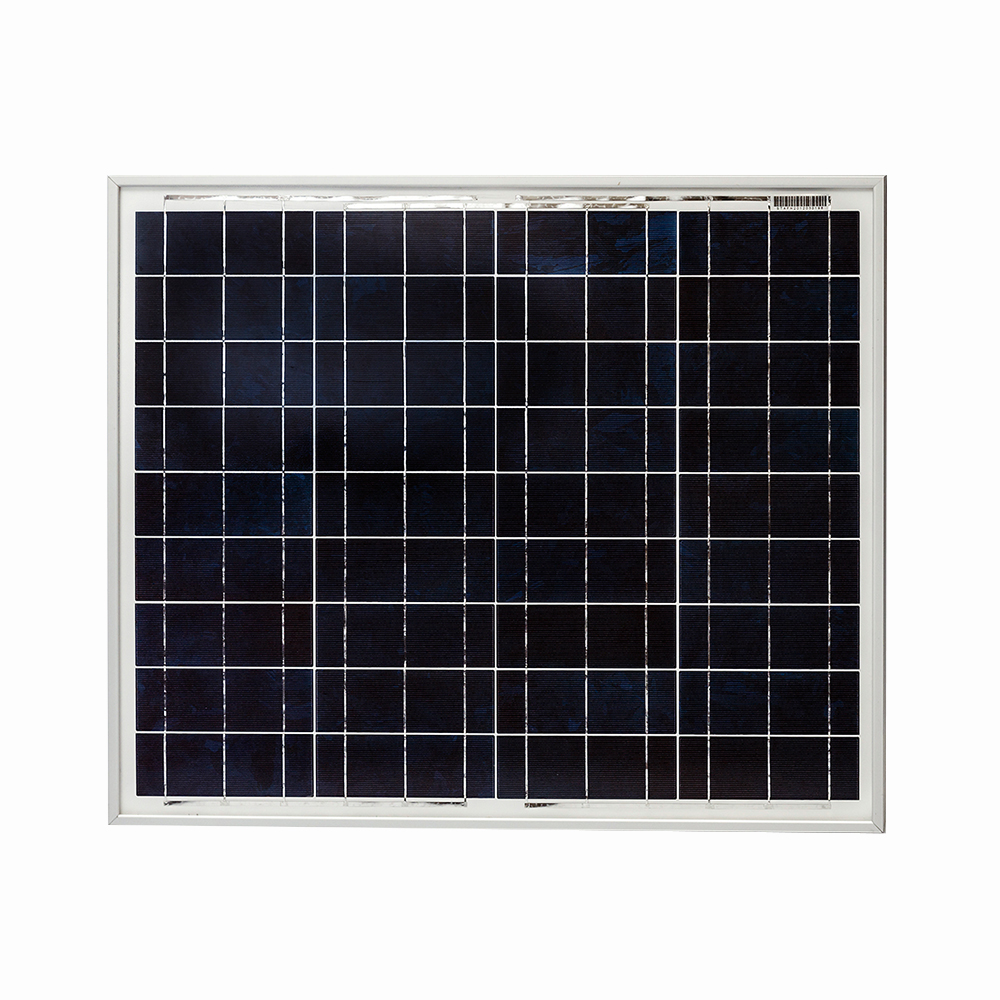

Suntye 50W



Click here to see it in our store!
Wattage (W)
50W
Model No.
ST-SP-50
Cell Type
Polycrystalline
Peak Power (Pmax)
50Wp
Power Tolerance
(+/-) 3%
Open Circuit Voltage
21.6V
Max. Power Voltage
17.5V
Short Circuit Current
3.09A
Max. Power Current
2.86A
Max System Voltage
600V DC
Gross Weight
11.0lbs
Net Weight
10.0lbs
Dimensions (mm)
H 565 x W 674 x D 35

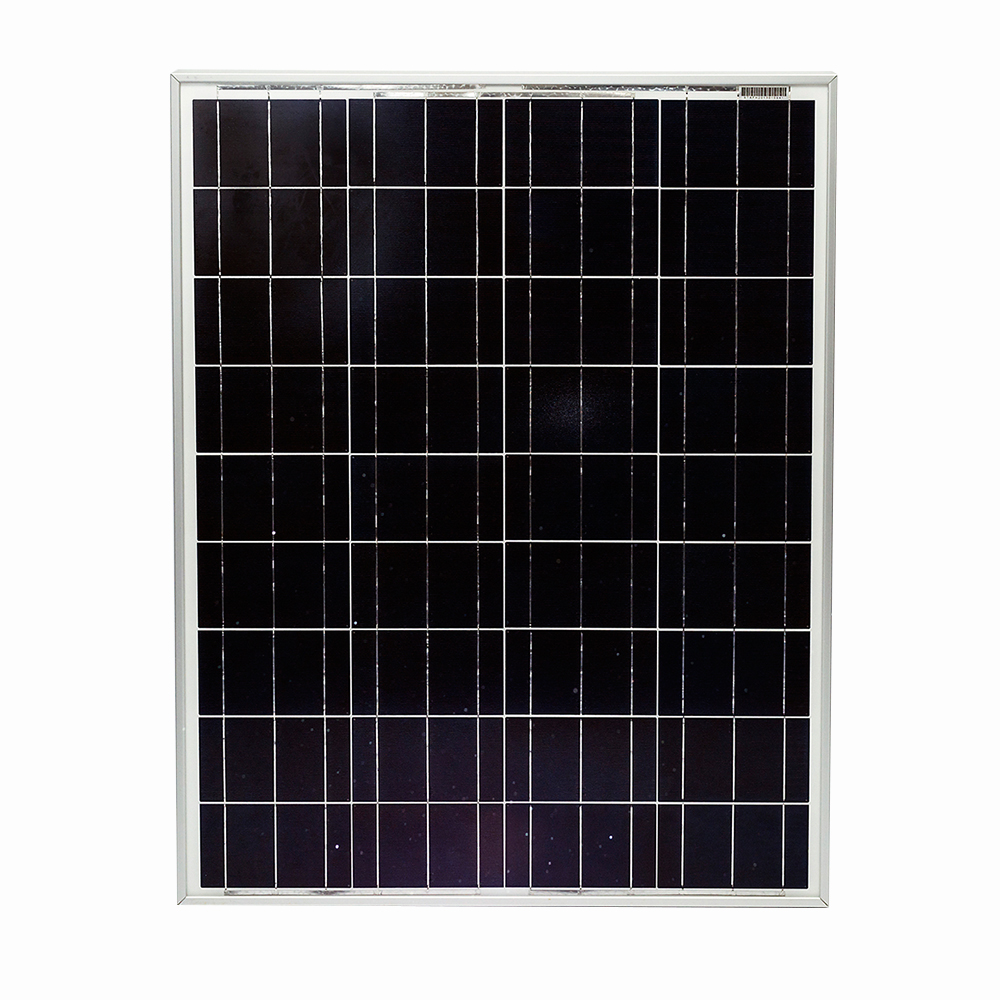

Suntye 80W



Click here to see it in our store!
Wattage (W)
80W
Model No.
ST-SP-80
Cell Type
Polycrystalline
Peak Power (Pmax)
80Wp
Power Tolerance
(+/-) 3%
Open Circuit Voltage
21.6V
Max. Power Voltage
17.5V
Short Circuit Current
4.94A
Max. Power Current
4.57A
Max System Voltage
600V DC
Gross Weight
18.5lbs
Net Weight
15.43lbs
Dimensions (mm)
H 865 x W 674 x D 35

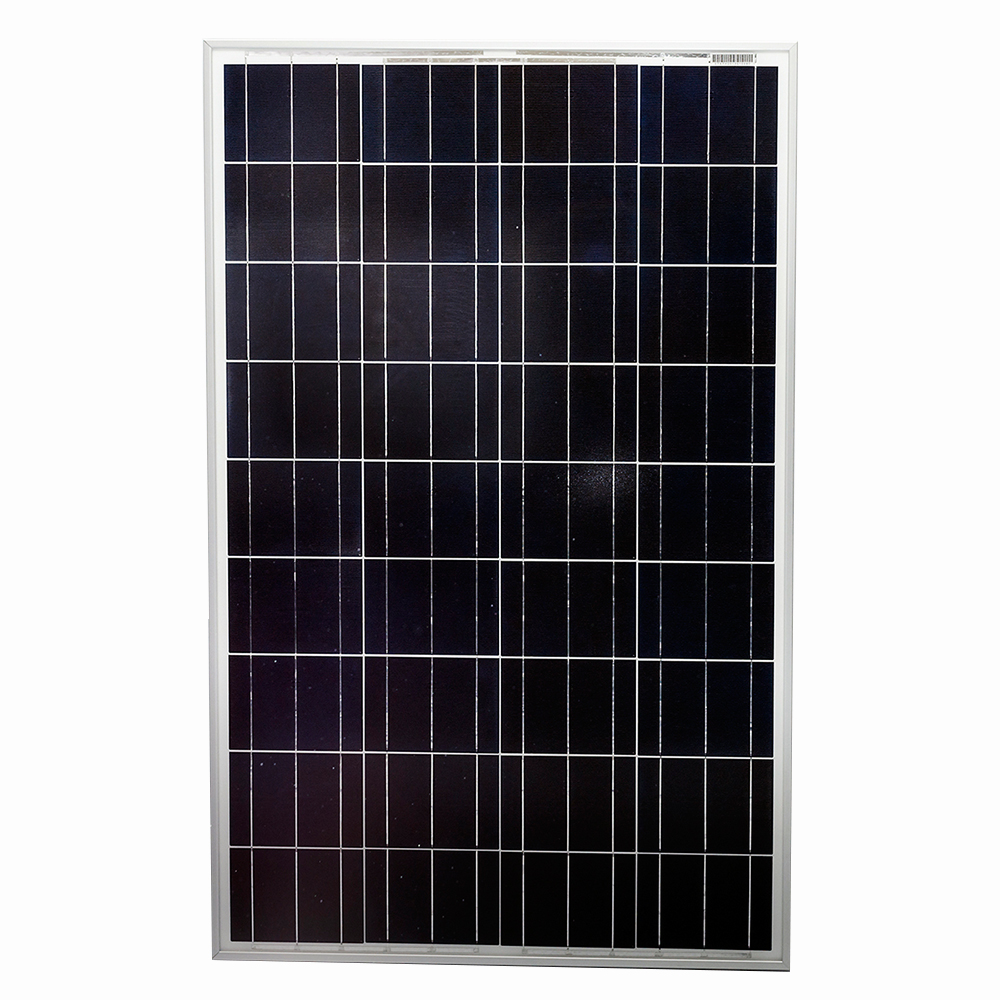

Suntye 100W



Click here to see it in our store!
Wattage (W)
100W
Model No.
ST-SP-100
Cell Type
Polycrystalline
Peak Power (Pmax)
100Wp
Power Tolerance
(+/-) 3%
Open Circuit Voltage
21.6V
Max. Power Voltage
17.5V
Short Circuit Current
6.17A
Max Power Current
5.71A
Max System Voltage
1000V DC
Gross Weight
22.49lbs
Net Weight
18.96lbs
Dimensions (mm)
H1070 x W674 x D35

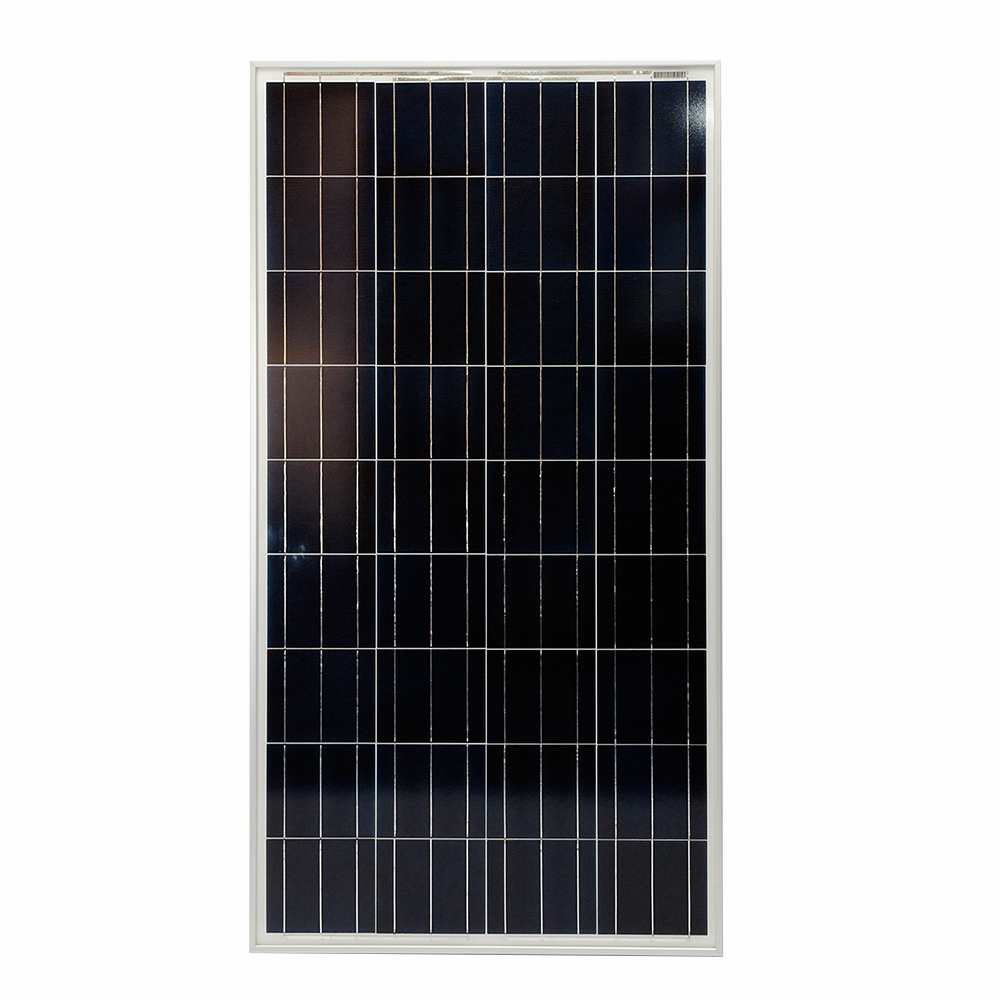

Suntye 120W



Click here to see it in our store!
Wattage (W)
120W
Model No.
ST-SP-120
Cell Type
Polycrystalline
Peak Power (Pmax)
120Wp
Power Tolerance
(+/-) 3%
Open Circuit Voltage
21.6V
Max. Power Voltage
17.5V
Short Circuit Current
7.41A
Max. Power Current
6.86A
Max System Voltage
1000V DC
Gross Weight
24.69lbs
Net Weight
21.16lbs
Dimensions (mm)
H1270 x W674 x D35

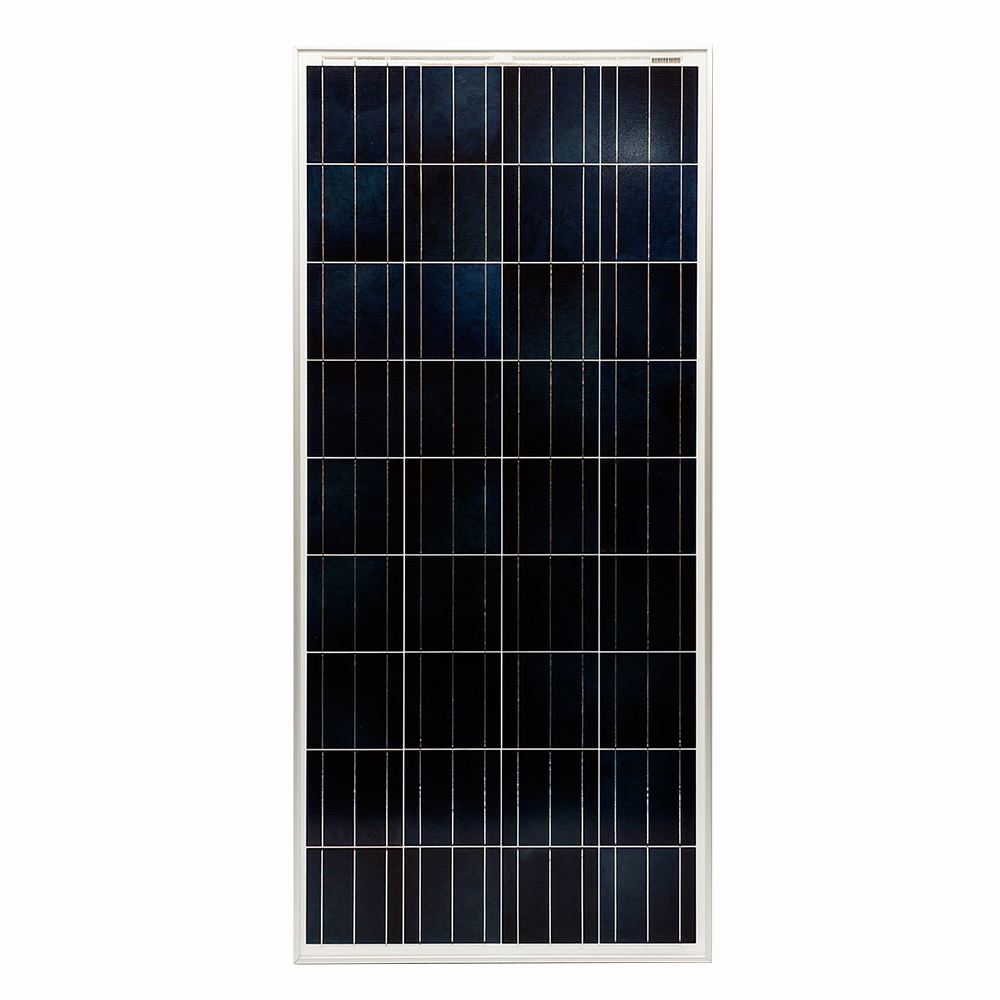

Suntye 140W



Click here to see it in our store!
Wattage (W)
140W
Model No.
ST-SP-140
Cell Type
Polycrystalline
Peak Power (Pmax)
140Wp
Power Tolerance
(+/-) 3%
Open Circuit Voltage
21.6V
Max. Power Voltage
17.5V
Short Circuit Current
8.64A
Max. Power Current
8A
Max System Voltage
1000V DC
Gross Weight
28.66lbs
Net Weight
24.69lbs
Dimensions (mm)
H1482 x W674 x D35

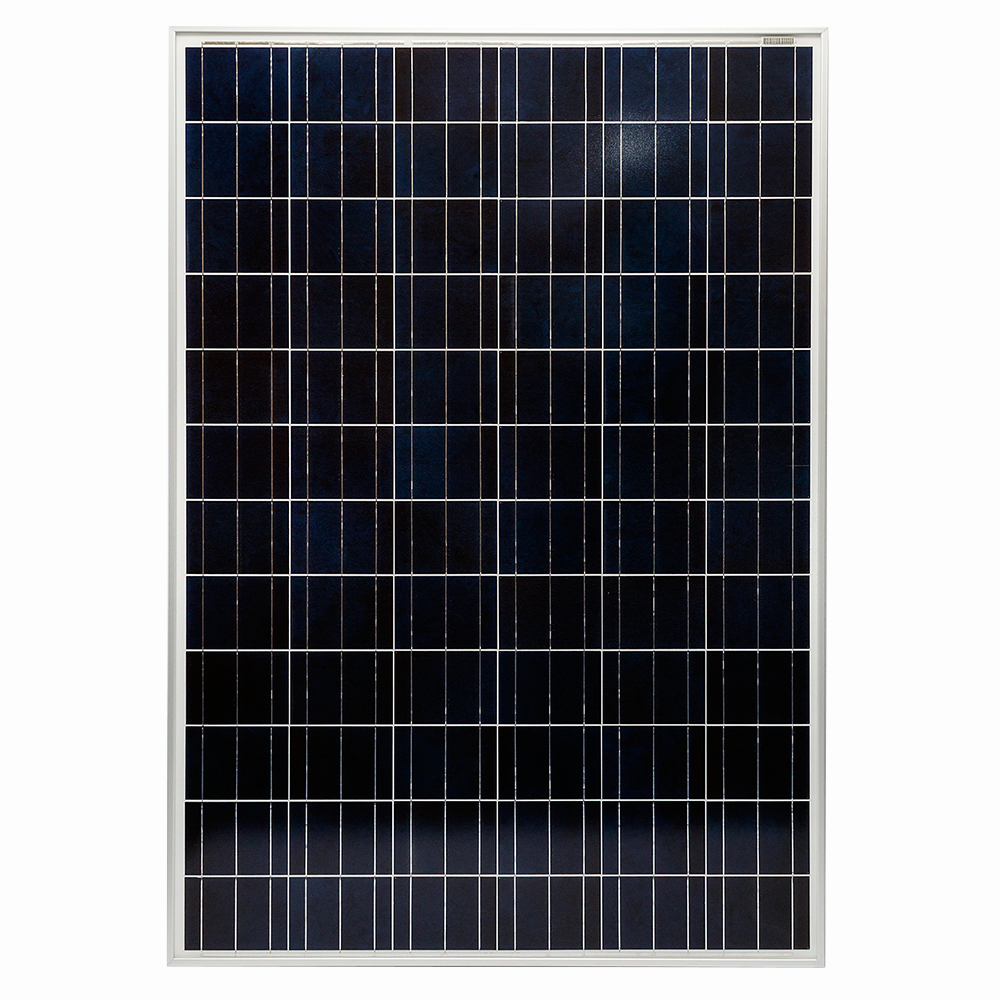

Suntye 200W



Click here to see it in our store!
Wattage (W)
200W
Model No.
ST-SP-200
Cell Type
Polycrystalline
Peak Power (Pmax)
200Wp
Power Tolerance
(+/-) 3%
Open Circuit Voltage
21.6V
Max. Power Voltage
17.5V
Short Circuit Current
12.34A
Max. Power Current
11.43A
Max System Voltage
1000V DC
Gross Weight
40.57lbs
Net Weight
36.16lbs
Dimensions (mm)
H1420 x W992 x D40
